Home / Projects / Dongguan Citizen Center ETFE membrane structure air pillow roof project

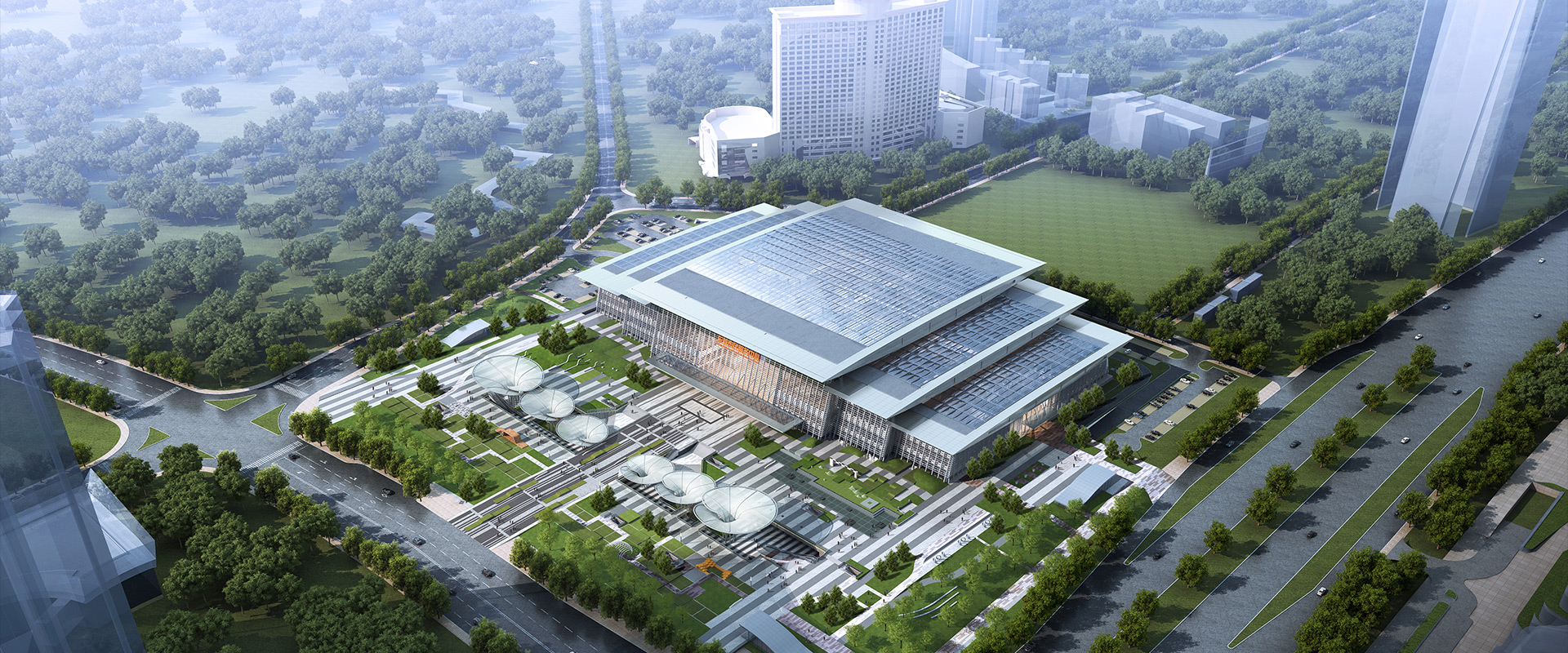

The Dongguan Civic Center ETFE membrane structure air pillow roof project is a key project in Guangdong and a large-scale municipal unit upgrading project. The work content is to remove the original rusty and corroded metal roof and replace it with an ETFE air pillow membrane structure with an aluminum alloy frame. The construction of this project is quite difficult, and the whole process requires computer modeling and simulation to ensure that a new air pillow membrane unit can be installed and docked immediately after the demolition of an old roof, so as to prevent rainwater from entering the house and causing damage. After the completion of the project, the roof is environmentally friendly and beautiful, which greatly improves the image of the local city and drives the development of surrounding business districts. The mayor of Dongguan specially praised the owner who organized this matter.
The Dongguan Civic Center ETFE membrane structure air pillow roof project is a key project in Guangdong and a large-scale municipal unit upgrading project. The work content is to remove the original rusty and corroded metal roof and replace it with an ETFE air pillow membrane structure with an aluminum alloy frame. The construction of this project is quite difficult, and the whole process requires computer modeling and simulation to ensure that a new air pillow membrane unit can be installed and docked immediately after the demolition of an old roof, so as to prevent rainwater from entering the house and causing damage. After the completion of the project, the roof is environmentally friendly and beautiful, which greatly improves the image of the local city and drives the development of surrounding business districts. The mayor of Dongguan specially praised the owner who organized this matter.

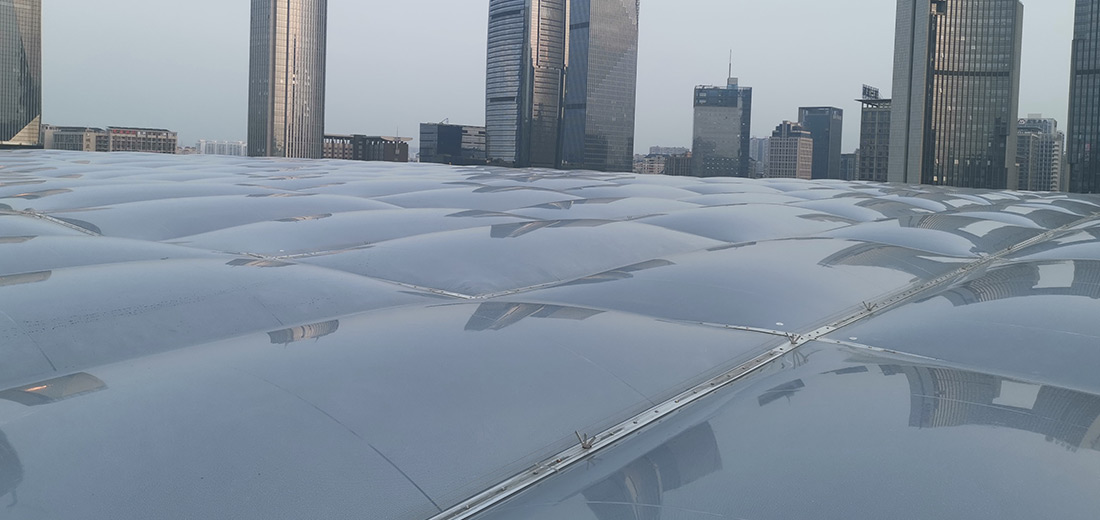

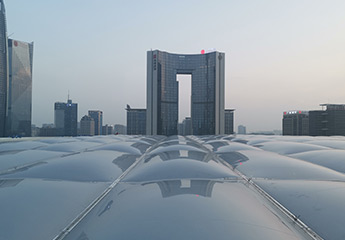

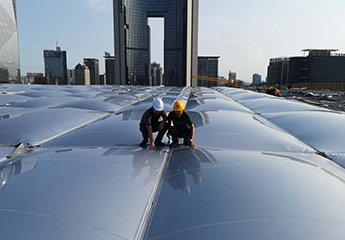

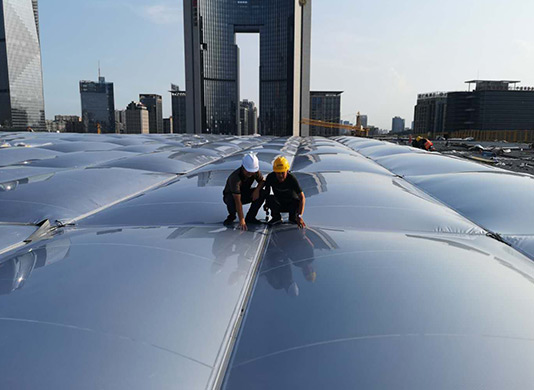

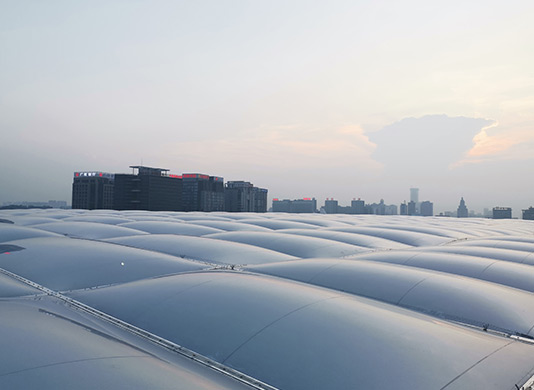

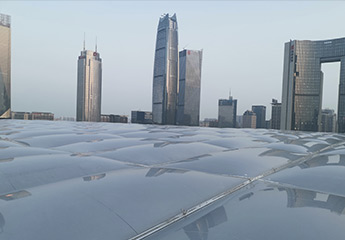

Dongguan Citizen Center ETFE membrane structure air pillow roof project
| Date | 2019 |
|---|---|
| Location | Guangdong, China |
| Size | 12,836 m² |
| Membrane | Light blue ETFE + plating point |
| Structure | Double ETFE air pillow membrane structure |
ETFE film: high light transmittance, excellent toughness, weather resistance, self-cleaning, and easy installation. Ideal for stadiums, tourist venues, and more.
View Details
The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.
Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.
Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.
Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.
The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.
Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
