ETFE membrane structure art landscape project of Huangshan Huashan Mystery Cave

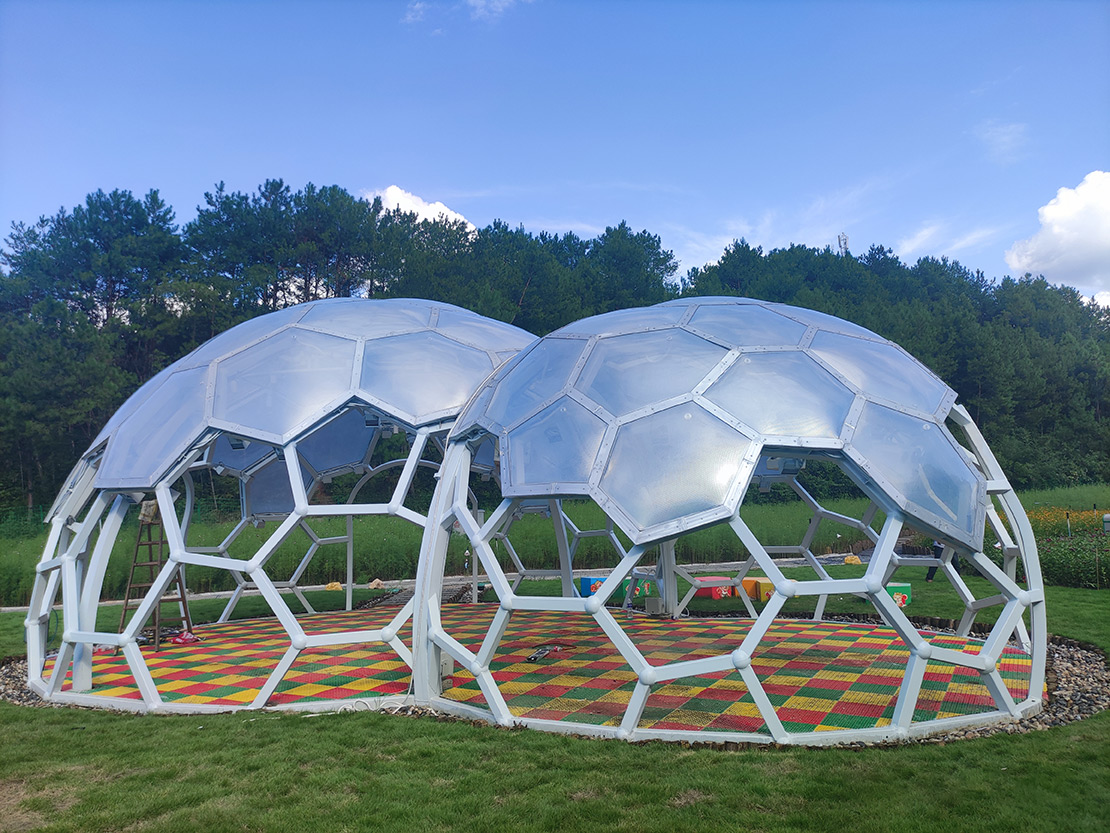

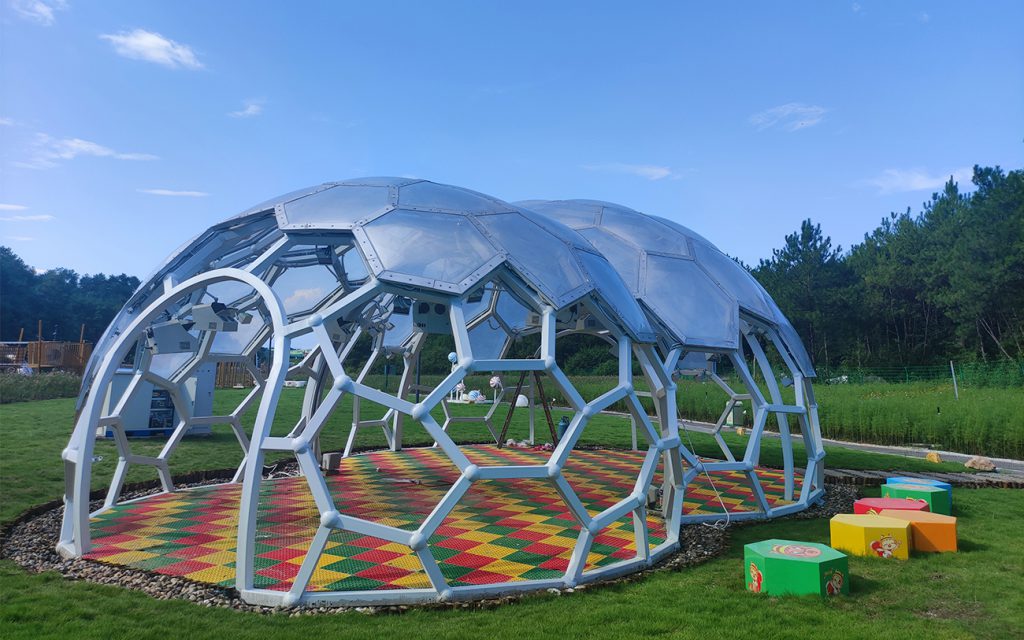

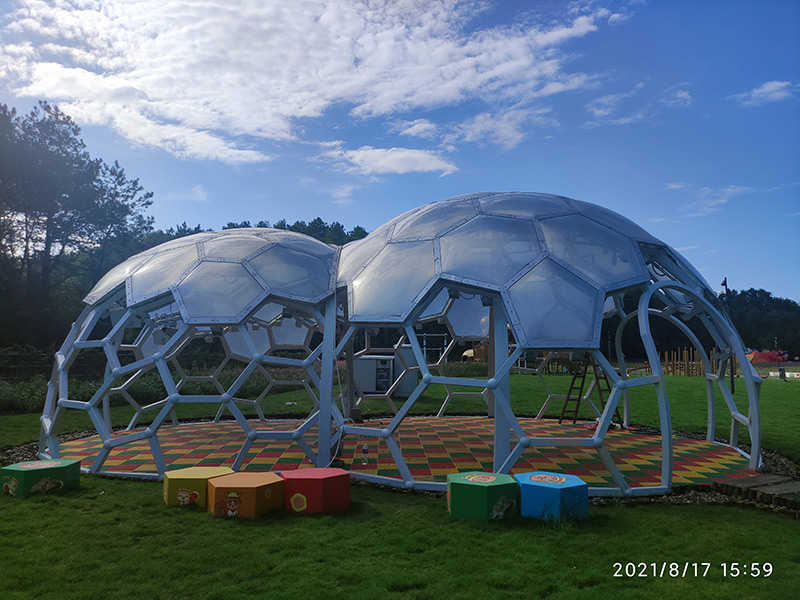

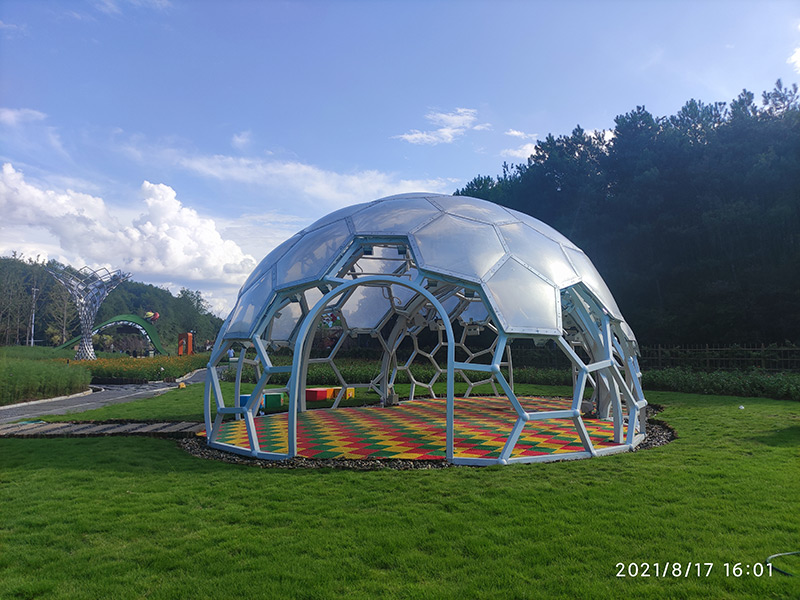

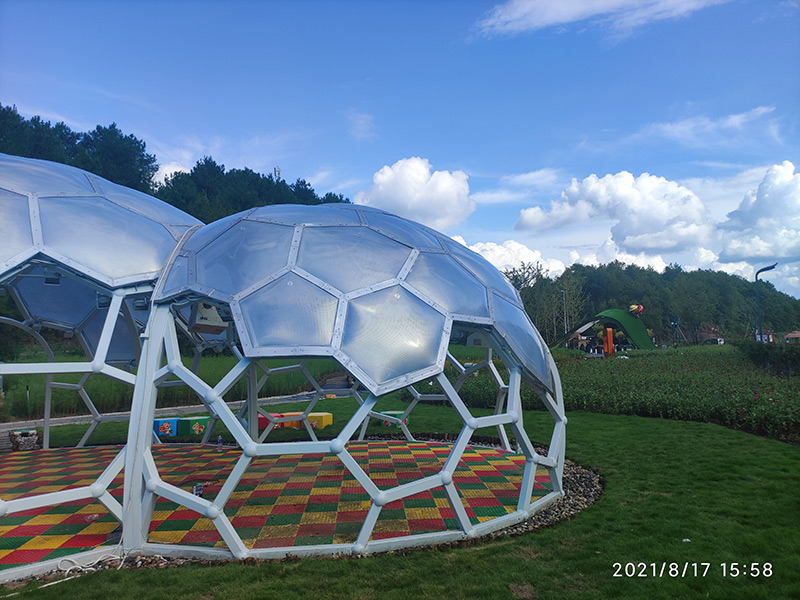

This project is an ETFE film structure art landscape project in Huashan Flower Sea Theme Park, Huashan Mystery Grottoes, Huangshan Scenic Area. The purpose is to create a place with high appearance for tourists to take photos and punch cards. The overall artistic landscape of Huangshan Huashan Mystery Grottoes is two big hemispherical steel structure bubbles close to each other. The two steel structure shells are divided into several units with artistic vision by Tyson polygon, and then the upper part of the shell is covered by ETFE air pillow film to form a semi open steel structure pavilion landscape with strong air bubbles. This “compact” ETFE membrane structure landscape, from the steel structure skeleton to the ETFE air pillow fixed by the aluminum alloy bracket, has exquisite processing and production of all materials. Whether viewed from a distance or near, it is a beautiful artwork that attracts people to stop and clock in. We have also equipped the ETFE film structure landscape with a laser light rendering system, a music system, and an automatic foaming system. Together with the surrounding flowers and lawns, we can create a dreamy and beautiful romantic experience for visitors.

Project images

ETFE membrane structure art landscape project of Huangshan Huashan Mystery Cave

Project Overview

Date 2021
Location Anhui, China
Size 215 m²
Membrane Transparent ETFE + plating point
Structure Double ETFE air pillow membrane structure

Expert Contact

Mr.Weigang Wang

Director of Yexing
Membrane Structure Design

yexing@yexinggroup.com

Featured Products

ETFE

ETFE film: high light transmittance, excellent toughness, weather resistance, self-cleaning, and easy installation. Ideal for stadiums, tourist venues, and more.

View Details

Quick Links

Back

The construction is fine and experienced

The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.

Permanent structure, stable as a mountain

Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.

Imported membrane material, wind and earthquake resistance

Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.

Advanced equipment, precision welding

Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.

8 processes, anti-corrosion and anti-rust

The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.

High-quality accessories, quality assurance

Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
