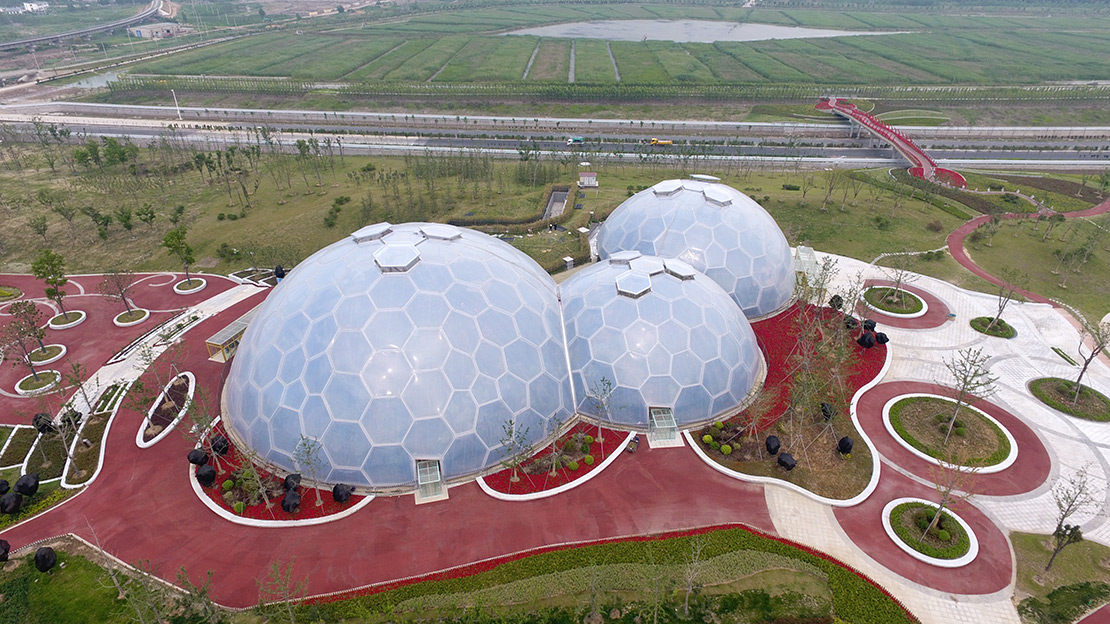

The Lianyungang ETFE membrane structure spherical greenhouse project is a green greenhouse exhibition hall that integrates scientific research and education, science popularization display, and commercial catering, with the theme of “coexistence and integration of humans and plants” and high-tech means. The spherical greenhouse exhibition hall is composed of three huge honeycomb dome hemispherical buildings full of future colors, covering an area of 5100 square meters, with a maximum height of 22 meters and a maximum diameter of 60 meters.

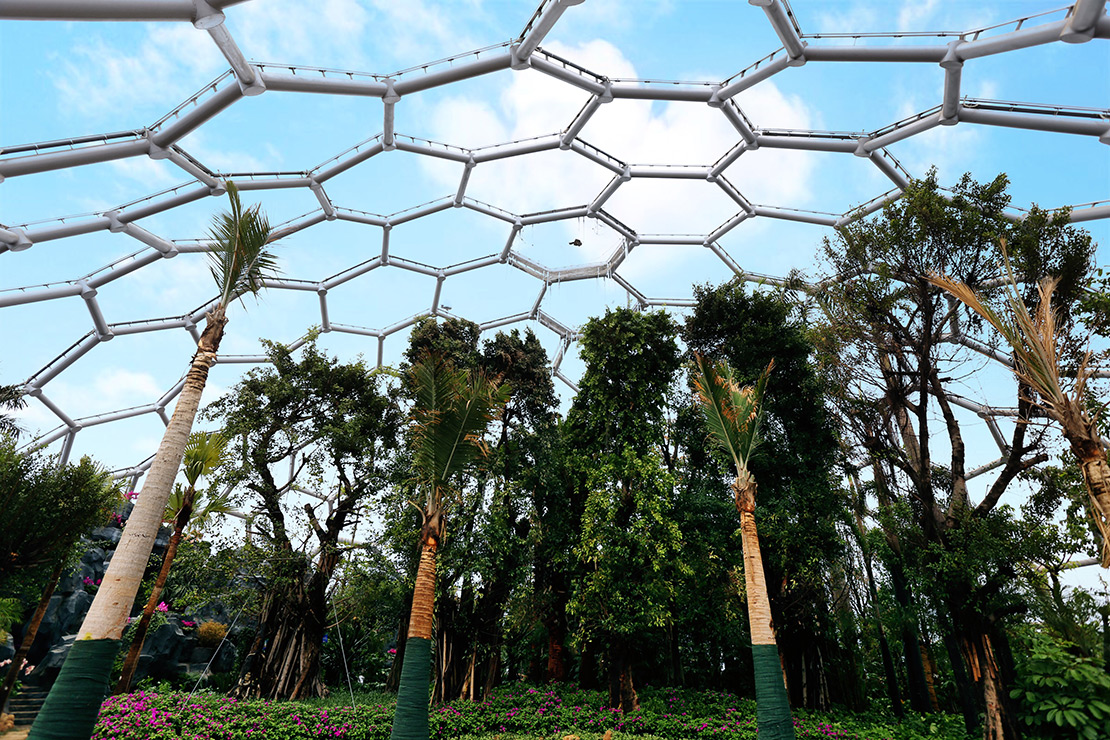

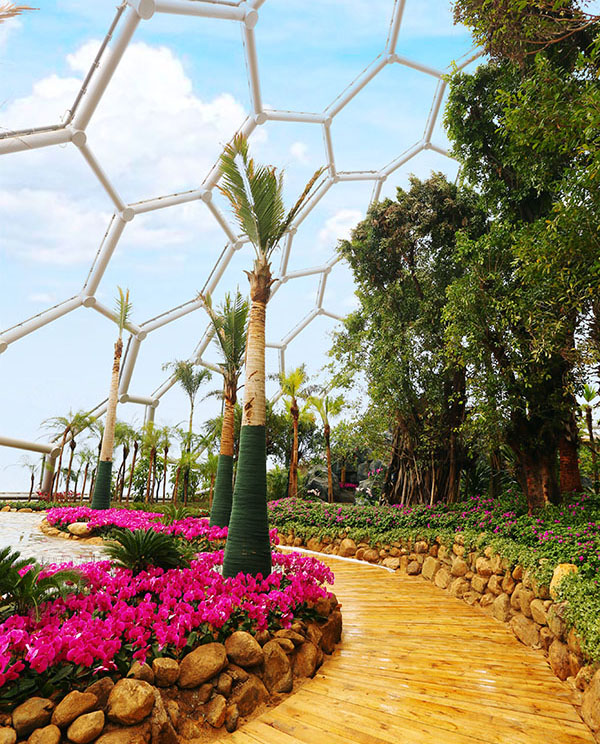

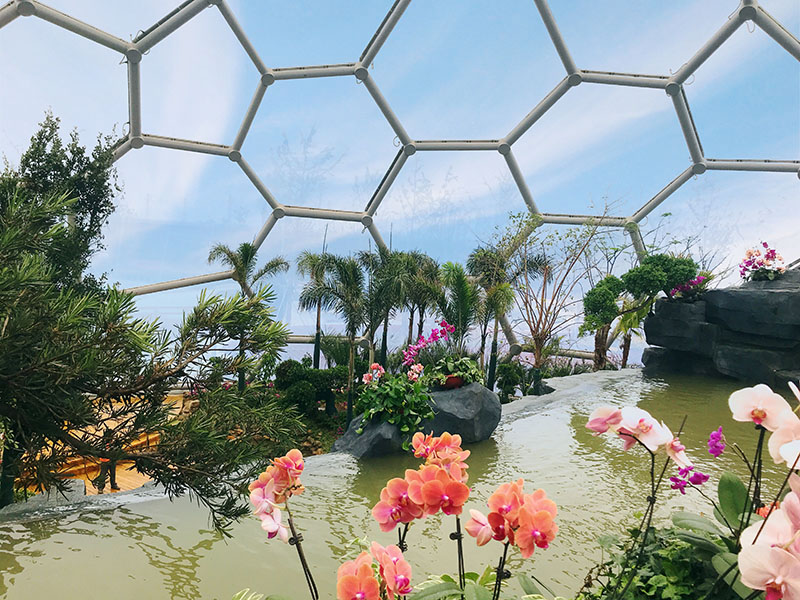

The whole roof is composed of 298 Pentagon and hexagon three-layer ETFE air pillow films of similar shape and size. The air pillow units are arranged in an orderly manner. The whole roof structure is evenly distributed, with reasonable force and strong artistic sense.

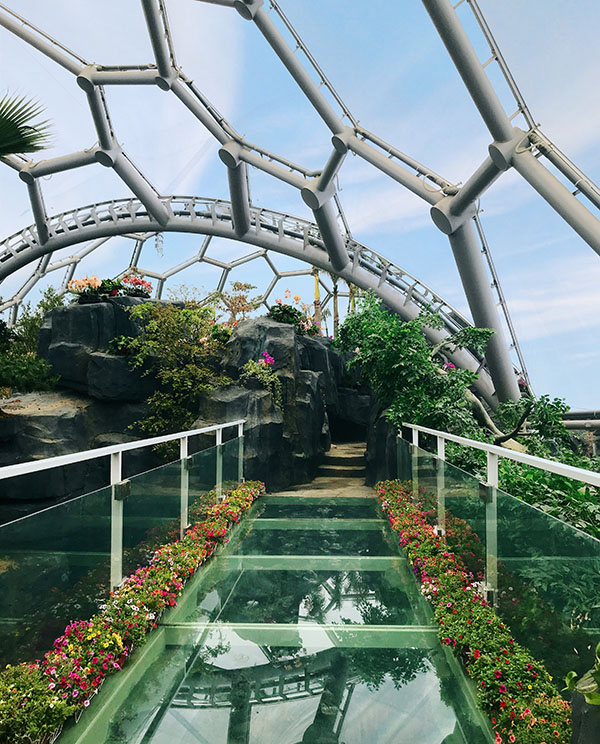

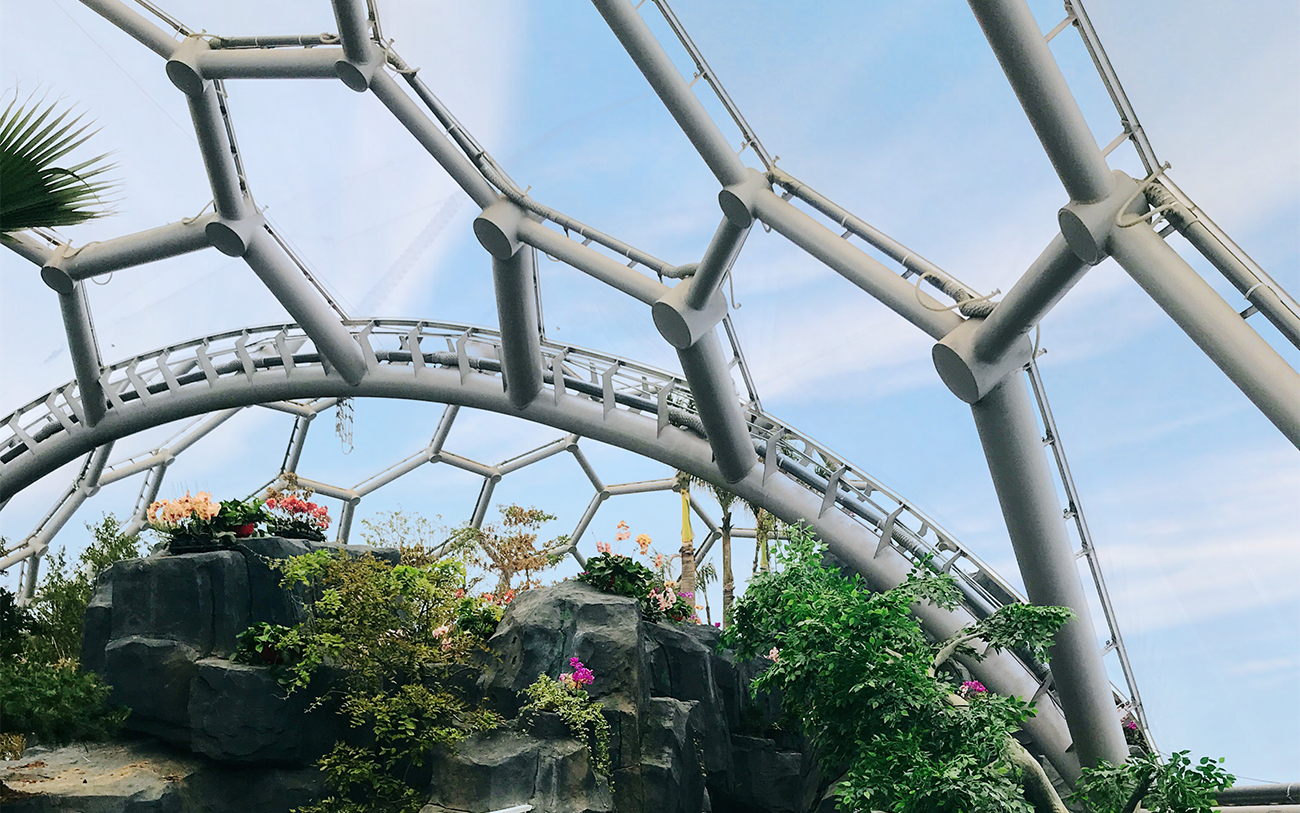

Project difficulty: The single-layer lattice shell has a large span. Irregular single-layer reticulated shell structure, in order to pursue a simple design effect, adopts a single-layer reticulated shell structure with a maximum span of 60 meters and a maximum arch height of 22 meters; The distribution and control of air pillow units shall be carried out on the spherical surface. The air pillow film shall ensure good visual effect and stress characteristics. The area of each air pillow unit shall be controlled within a specific range, and the shape must be hexagonal or Pentagon. It is not easy to achieve in a specific spherical surface; Indoor air convection and air quality control. As this building is an exhibition hall, in order to ensure the comfort of tourists during the later operation process, it is necessary to achieve air convection and ensure that there is sufficient fresh air in the enclosed space for a long time.
Lianyungang ETFE Membrane Structure Spherical Greenhouse Project
| Date | 2018 |
|---|---|
| Location | Jiangsu, China |
| Size | 15,000 m² |
| Membrane | Transparent ETFE + plating point |
| Structure | ETFE three-layer air pillow membrane structure |
ETFE film: high light transmittance, excellent toughness, weather resistance, self-cleaning, and easy installation. Ideal for stadiums, tourist venues, and more.
View Details
The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.
Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.
Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.
Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.
The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.
Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
