Home / Projects / Mount Taishan Jiunvfeng Study Membrane Structural engineering

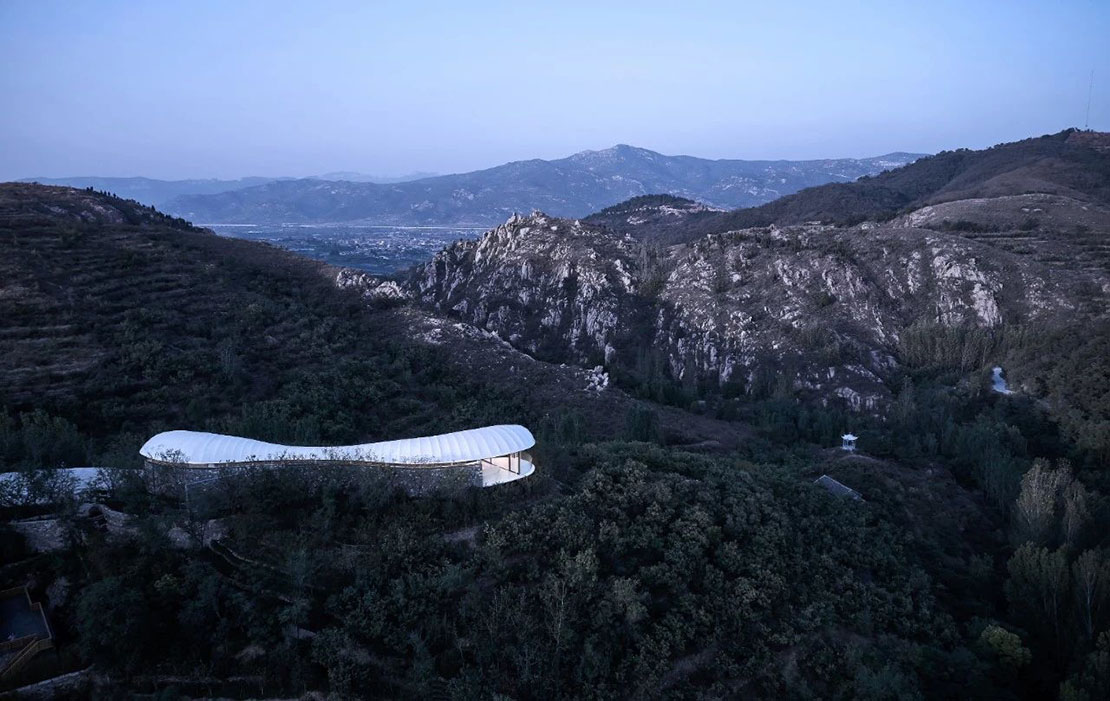

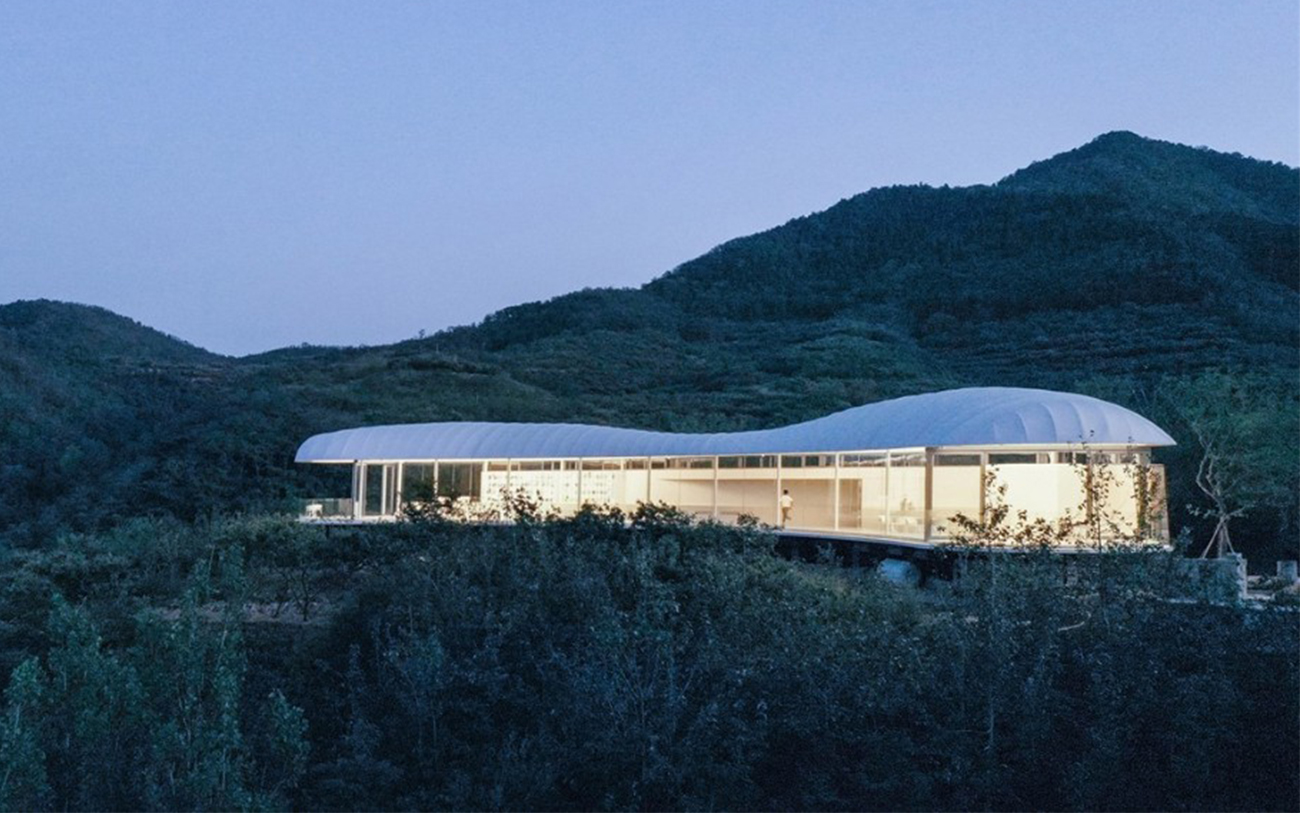

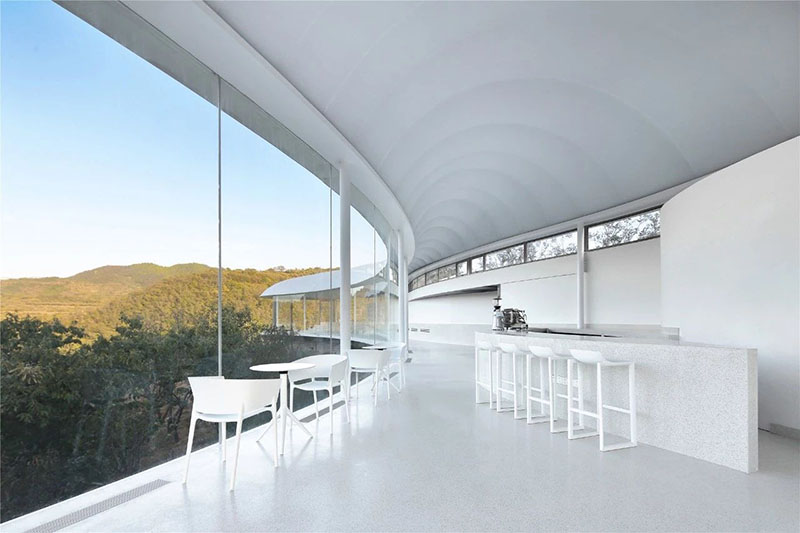

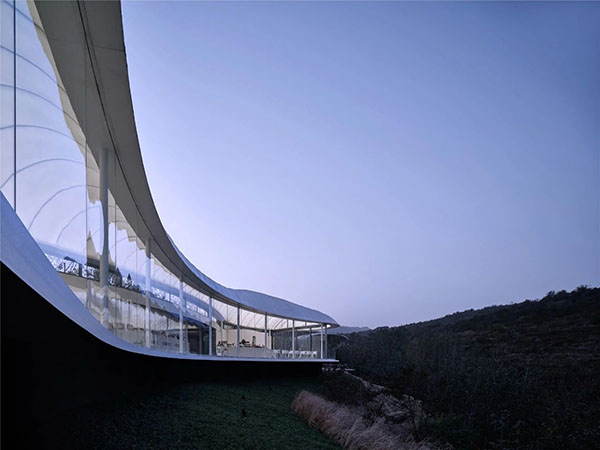

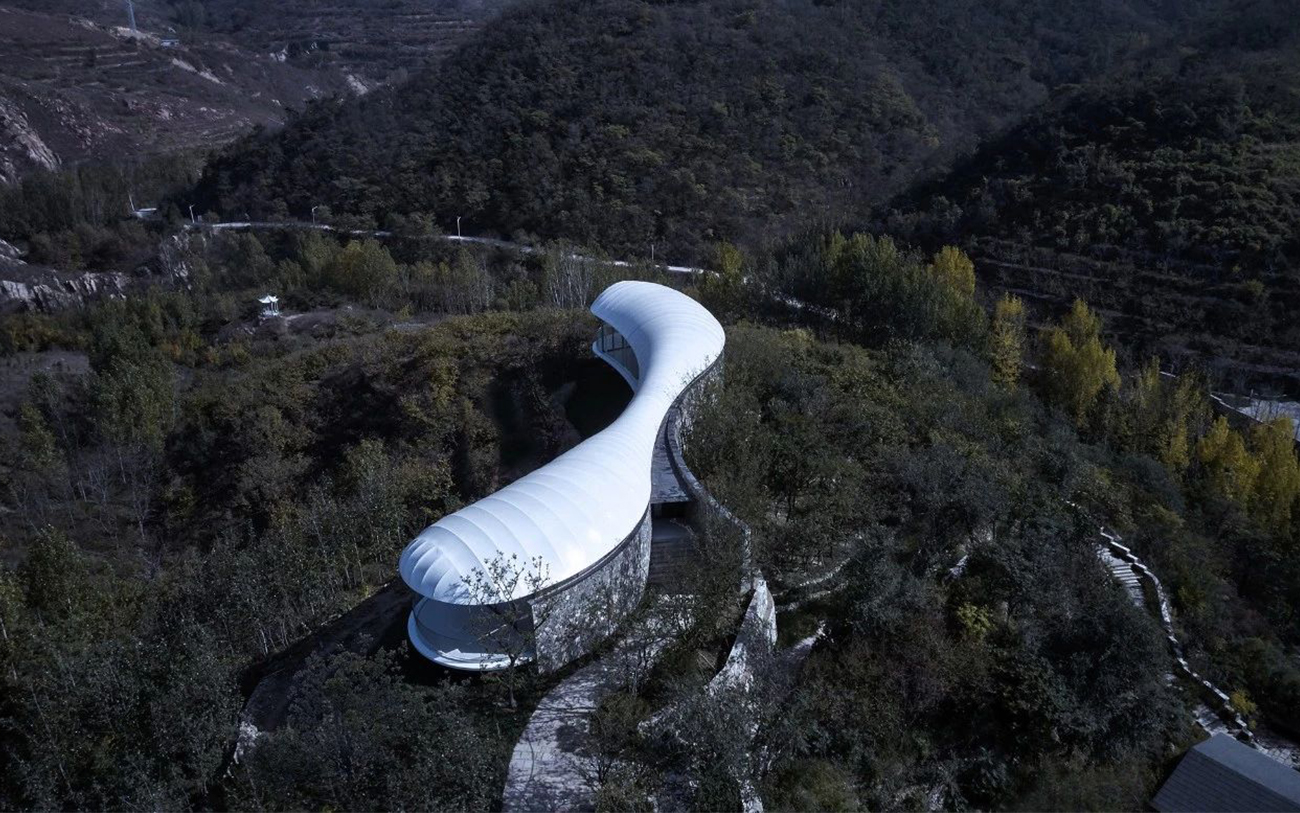

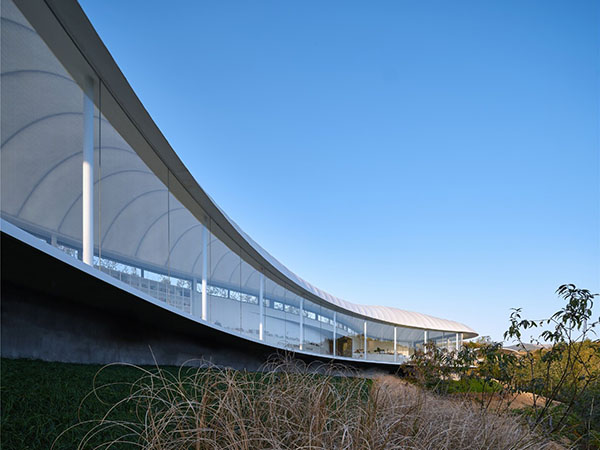

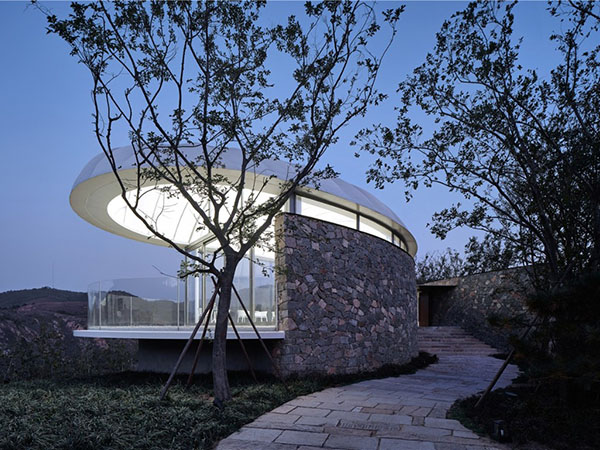

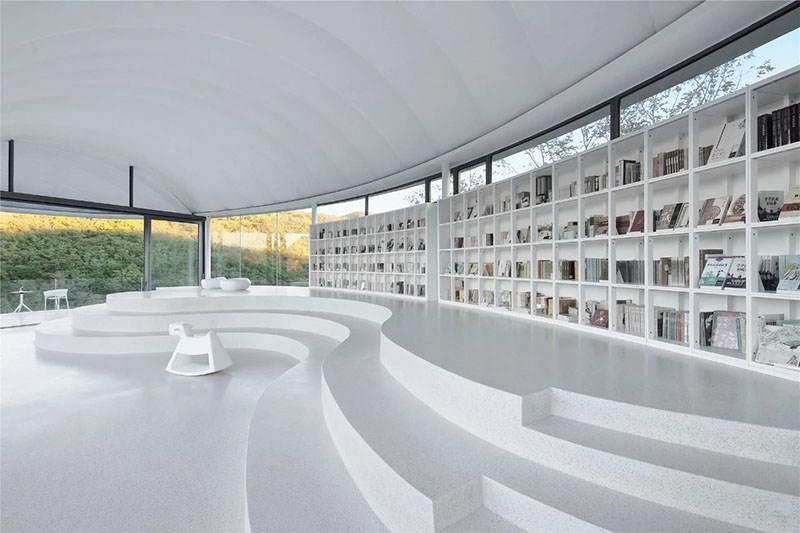

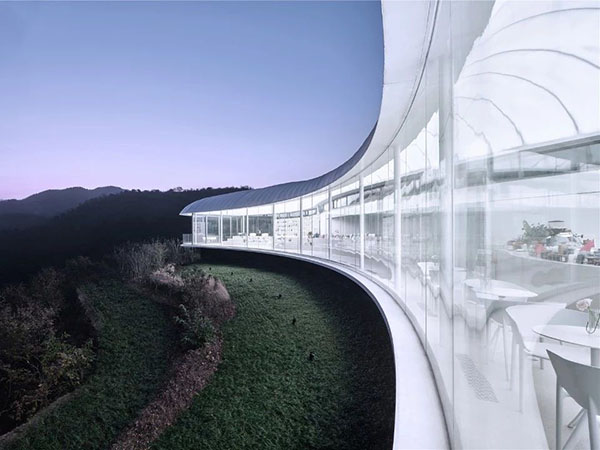

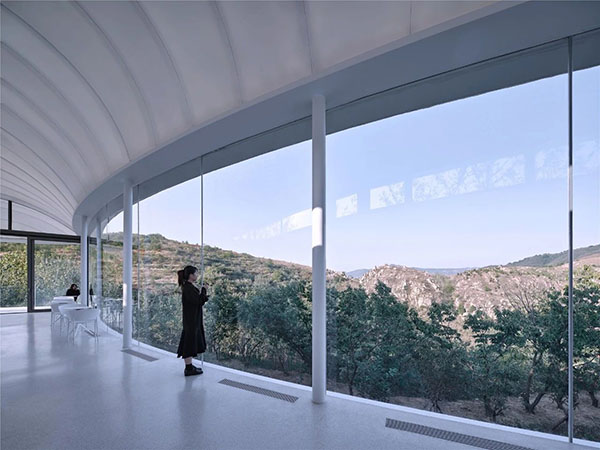

The study of Jiunvfeng in Mount Taishan Mountain is a steel membrane structure building integrating sightseeing, reading, leisure and entertainment. It not only has the modern flavor of the membrane structure building itself, but also has the exquisite elegance given by the superb skills of the designers and builders. It gives people a fashionable but restrained and simple sense of view, and has won many architectural awards. The roof of this project is streamlined, with a building area of approximately 300 square meters. The outer membrane is made of white environmentally friendly film material imported from Germany, and the inner membrane is made of PTFE with an insulation layer added in the middle. The inner membrane needs to be equipped with lighting. Below the roof is a fully enclosed space, and the walls are in the form of floor glass, providing excellent visual effects from all angles.
Mount Taishan Jiunvfeng Study Membrane Structural engineering
| Date | 2019 |
|---|---|
| Location | Shandong, China |
| Size | 300 m² |
| Membrane | White PVDF film |
| Structure | Framework Membrane Structure |
The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.
Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.
Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.
Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.
The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.
Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
