Home / Projects / PVDF Sky Curtain of Hainan Yuanda Plaza

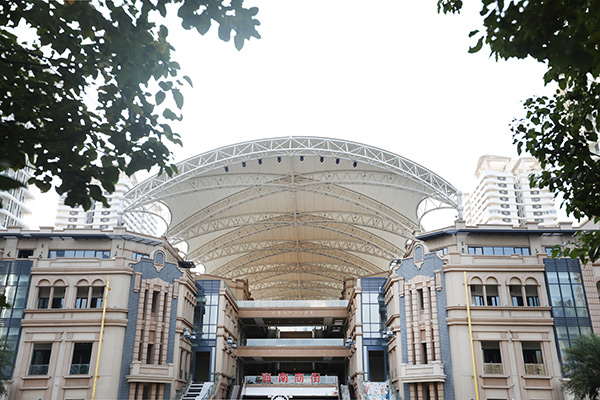

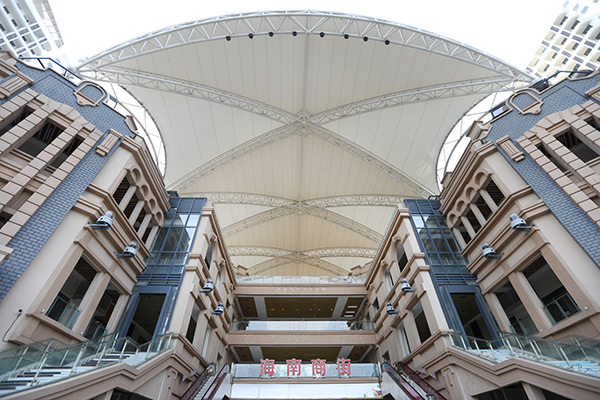

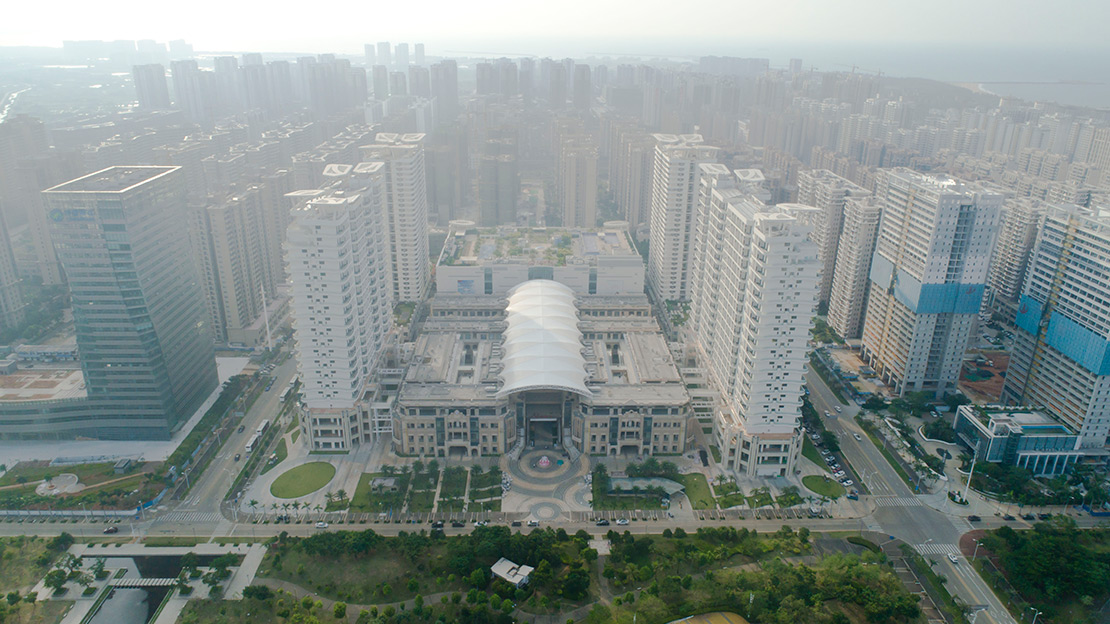

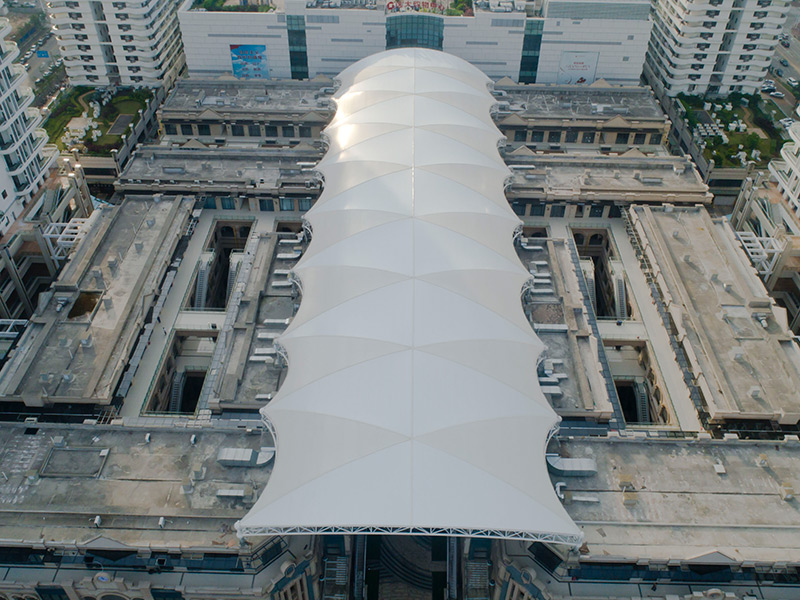

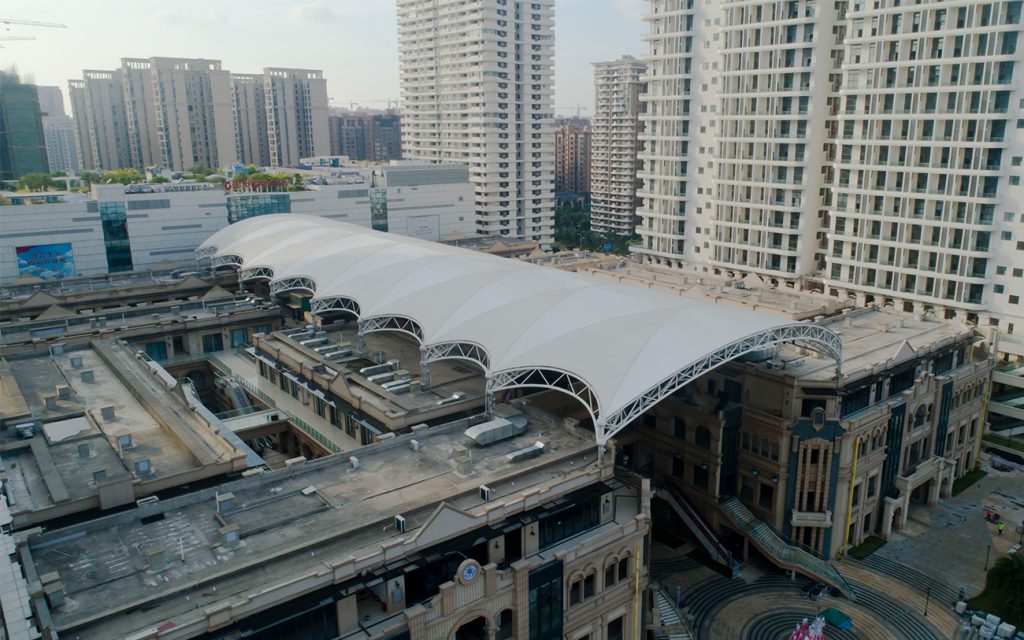

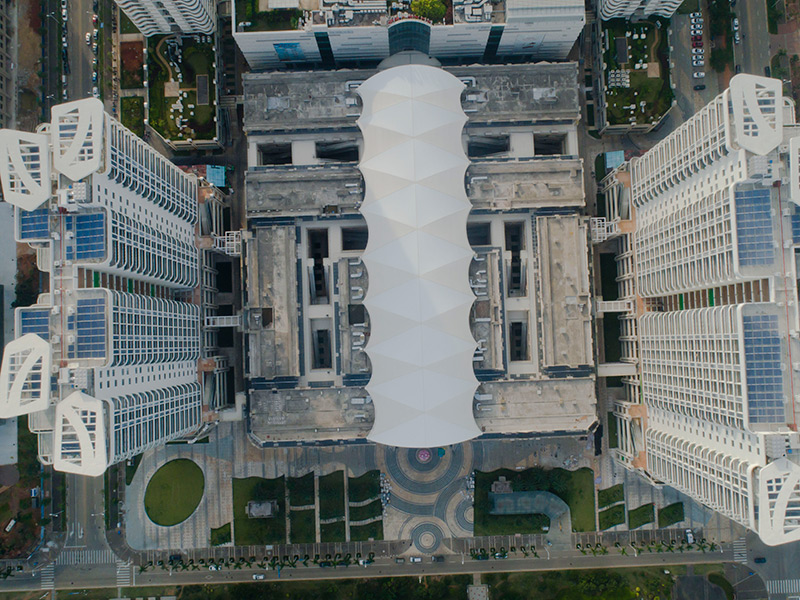

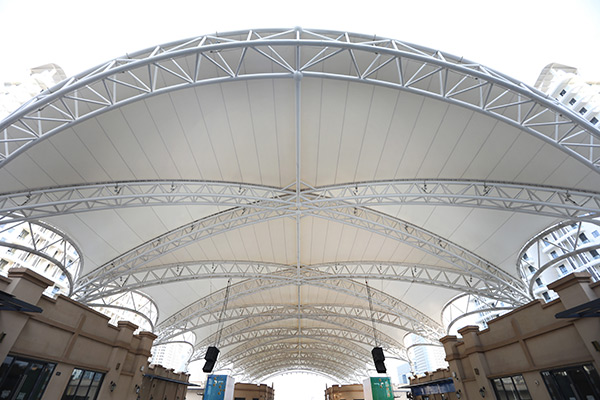

The 3D curtain membrane structure project of Hainan Yuanda Plaza is a typical commercial plaza building, designed and built by our Yexing membrane structure. The project is mainly pure white, and the large and delicate steel structure skeleton supports the dome canopy of nearly 6000 square meters, which is made of two high-quality membrane materials in sequence according to the petal pattern. The heavy steel structure design takes into account the wind resistance elements of coastal cities, and the splicing of heterogeneous membrane materials gives the huge dome a visual sense of hierarchy in the daytime. The membrane dome not only has the practical function of sunshade and rain proof, but also is a screen for light projection. Under the 3D sky screen film structure of Yuanda Plaza, you may enjoy the fish and dragon dance, twilight and dawn, nebula universe… the dream scenes you can imagine can be realized with 3D sky screen.
PVDF Sky Curtain of Hainan Yuanda Plaza
| Date | 2018 |
|---|---|
| Location | Hainan, China |
| Size | 6,000 m² |
| Membrane | White PVDF film |
| Structure | Framework Membrane Structure |
The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.
Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.
Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.
Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.
The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.
Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
