Home / Projects / Sales Center of Guiyang Railway Station Aircraft Dam Shed Renovation Project

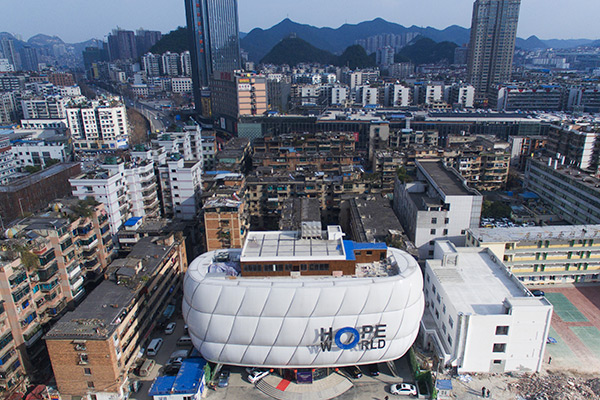

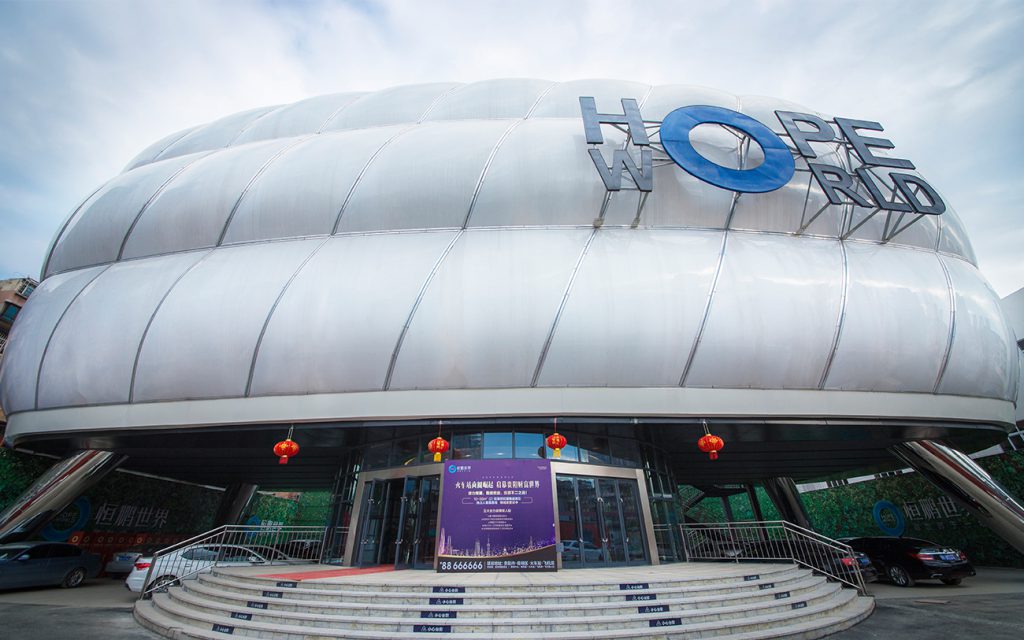

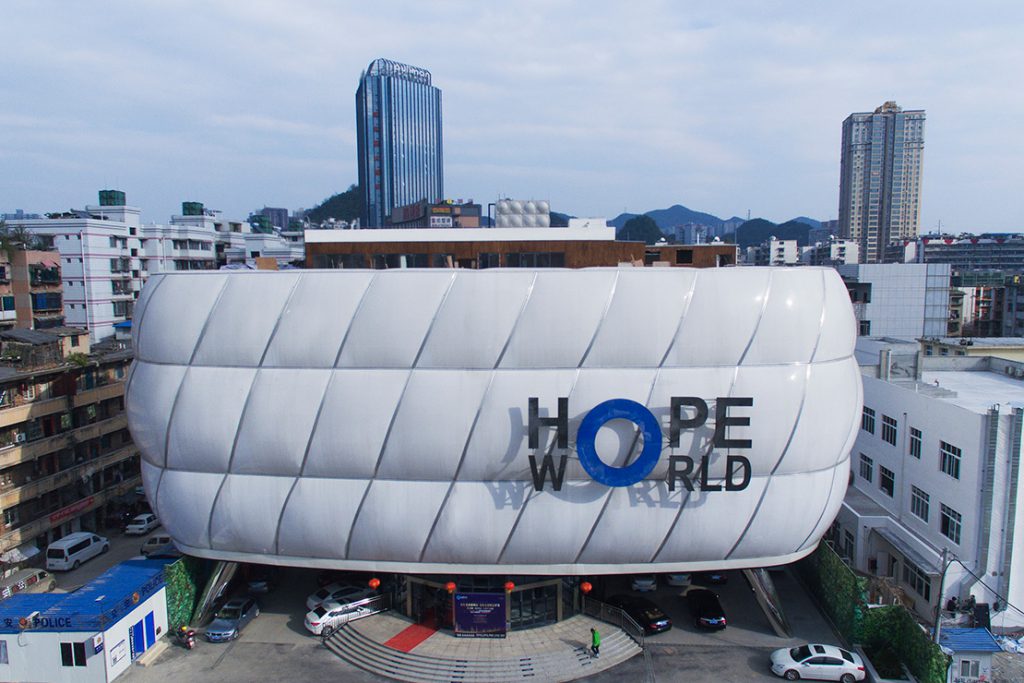

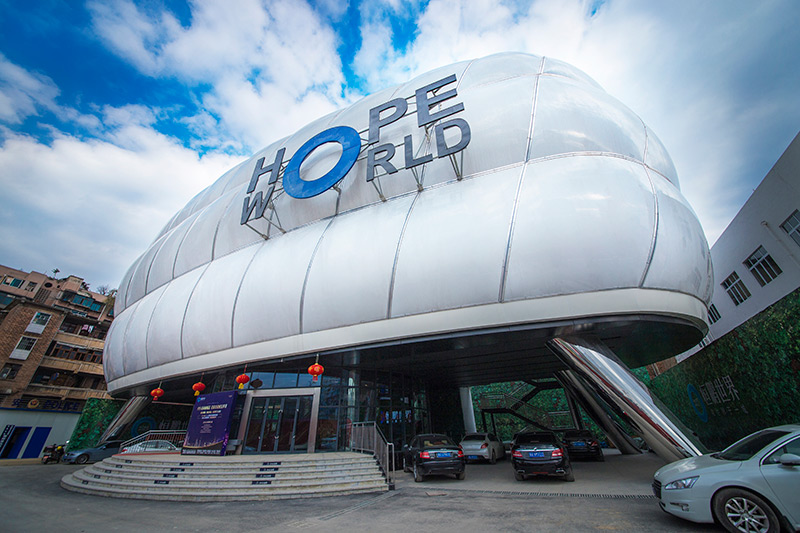

The project is to build a decorative curtain wall for the sales center. The sales center is a four story structure, with a project scale of 1920 square meters and a building height of 24.7 meters. It is wrapped with opalescent ETFE film, and the building facade is oval. The overall structure is 133 air pillow quadrangle, and ETFE double-layer air pillow membrane structure of similar size is assembled; The unit structure air pillow is twisted in many directions and arranged in order, which reflects the changeable artistic effect of ETFE membrane structure modeling, and the perfect combination of ETFE membrane and steel structure building.
Sales Center of Guiyang Railway Station Aircraft Dam Shed Renovation Project
| Date | 2017 |
|---|---|
| Location | Guizhou, China |
| Size | 1,920 m² |
| Membrane | Milky white ETFE film |
| Structure | Double ETFE air pillow membrane structure |
ETFE film: high light transmittance, excellent toughness, weather resistance, self-cleaning, and easy installation. Ideal for stadiums, tourist venues, and more.
View Details
The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.
Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.
Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.
Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.
The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.
Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
