Home / Projects / Xining Tangdao Jinzuo Real Estate Commercial Hollow Membrane Structural engineering

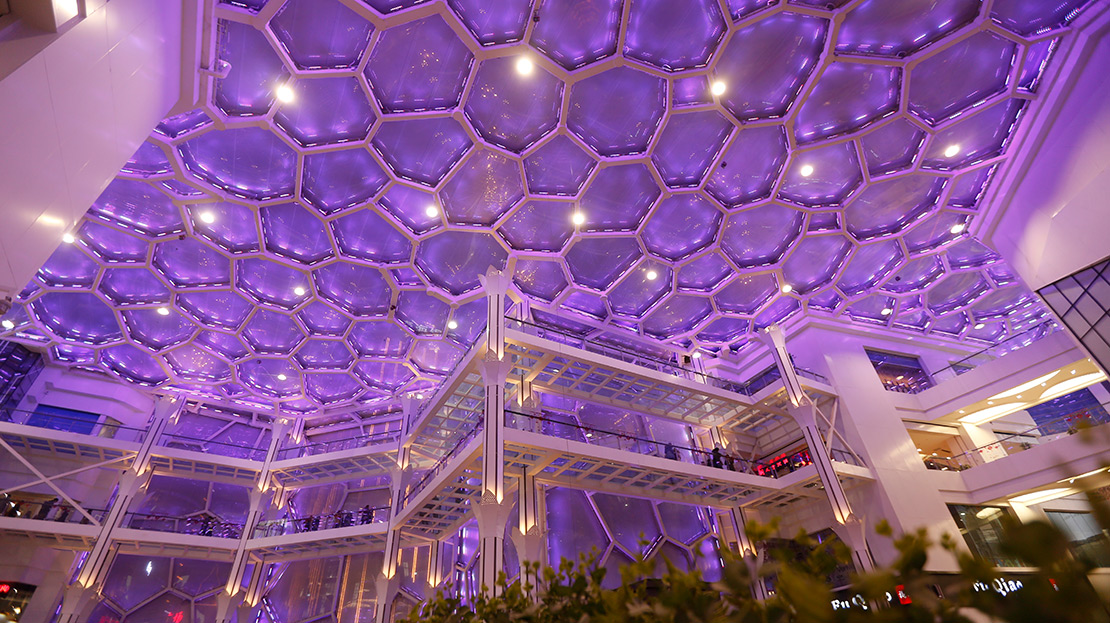

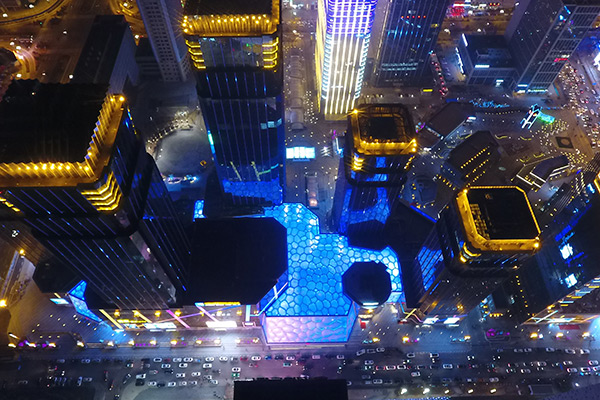

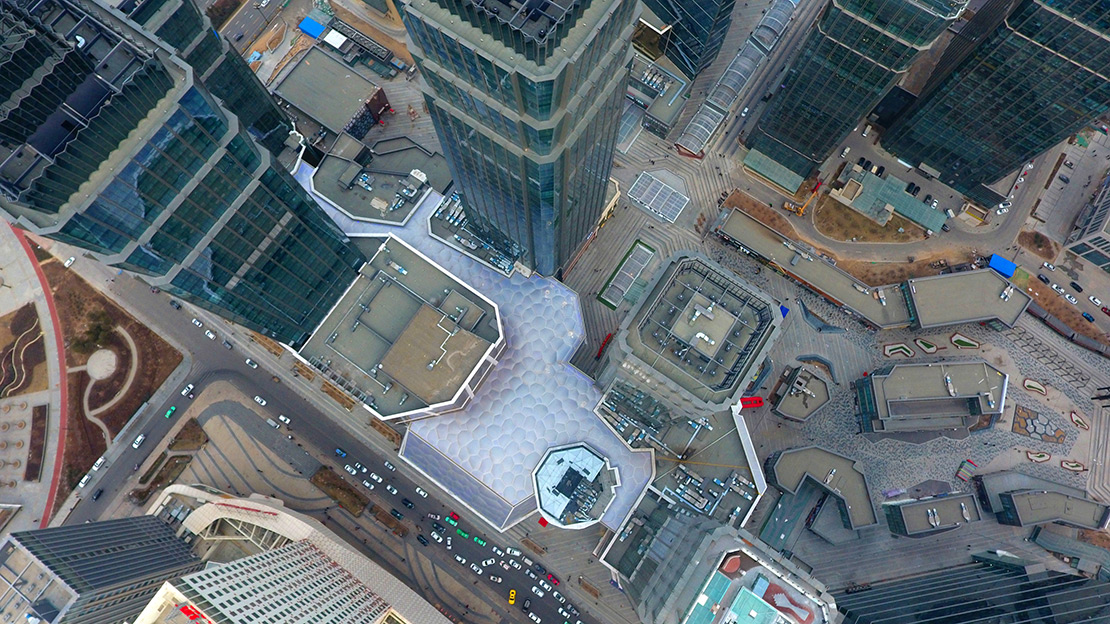

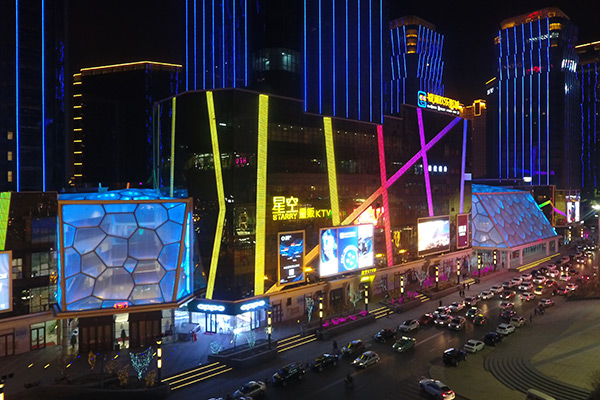

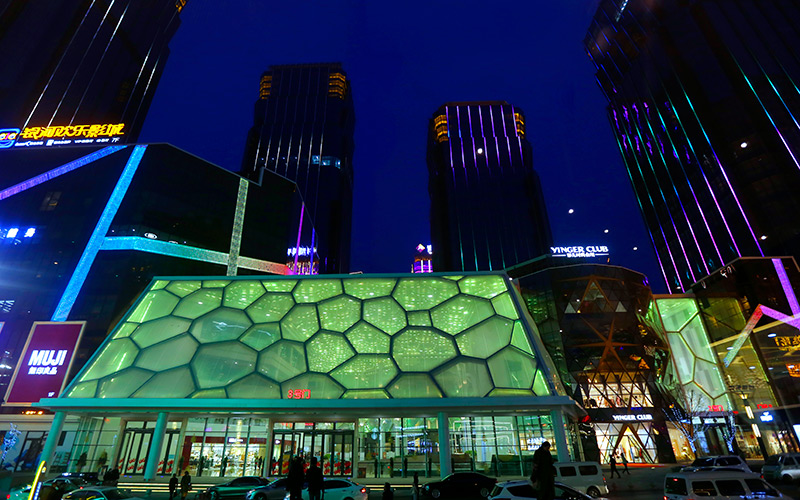

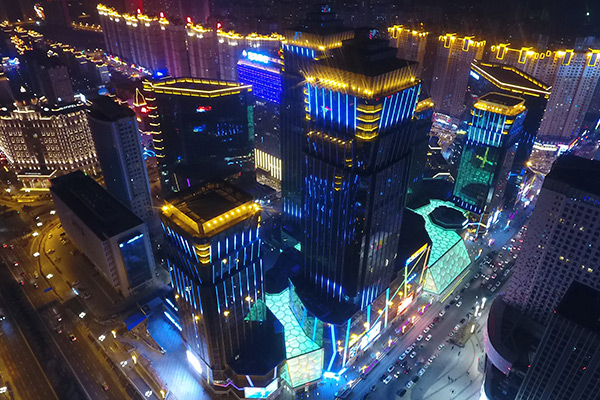

The main steel structure of the project adopts a square thick pipe steel frame, and the roof uses a three layer ETFE air pillow membrane structure with a Tyson polygon of nearly 9000 square meters. The biggest feature of this ETFE air pillow membrane structure is that it is clean and transparent during the day, which can not only provide a large amount of sunlight, but also provide thermal insulation; At night, solid colored film bubbles can perfectly render the colors released by LED lights, making them incredibly gorgeous.
Xining Tangdao Jinzuo Real Estate Commercial Hollow Membrane Structural engineering
| Date | 2017 |
|---|---|
| Location | Qinghai, China |
| Size | 9,000 m² |
| Membrane | Transparent ETFE + plating point |
| Structure | ETFE three-layer air pillow membrane structure |
ETFE film: high light transmittance, excellent toughness, weather resistance, self-cleaning, and easy installation. Ideal for stadiums, tourist venues, and more.
View Details
The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.
Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.
Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.
Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.
The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.
Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
