Home / Projects / Yunfu Xinxing County Zen Holy Land Lotus PTFE Membrane Structure Rotating Stage Theater Project

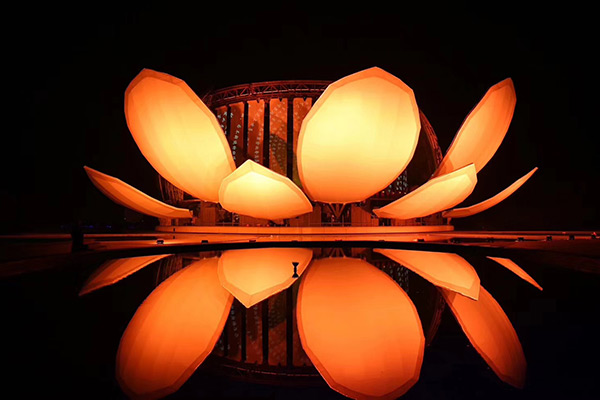

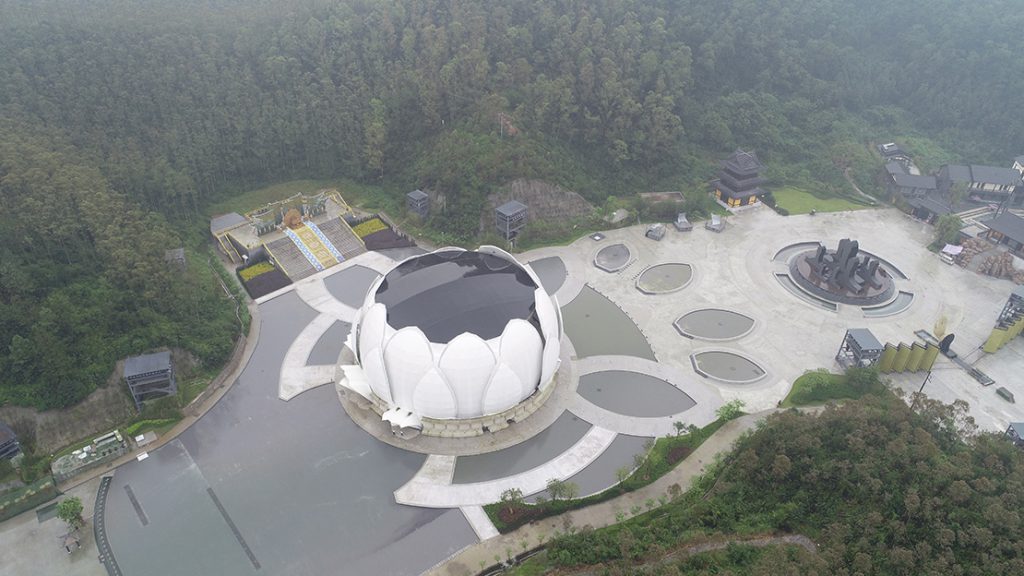

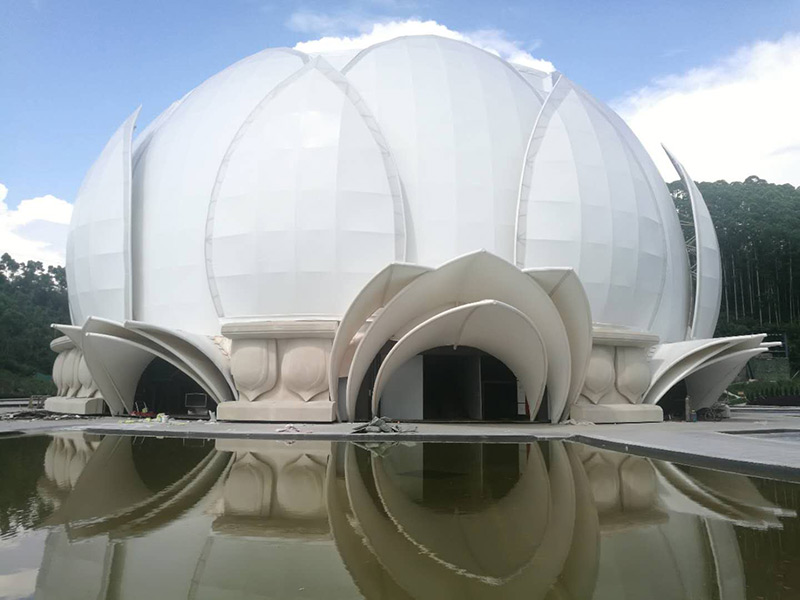

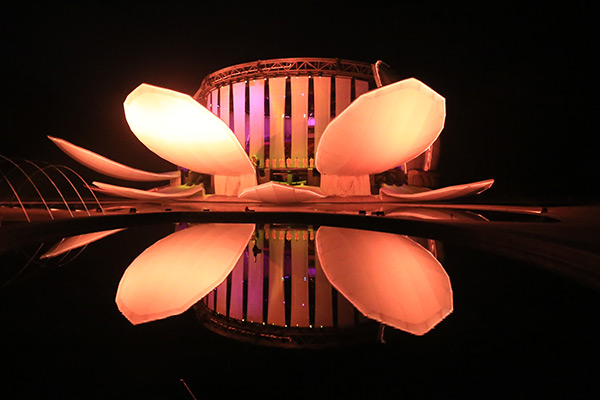

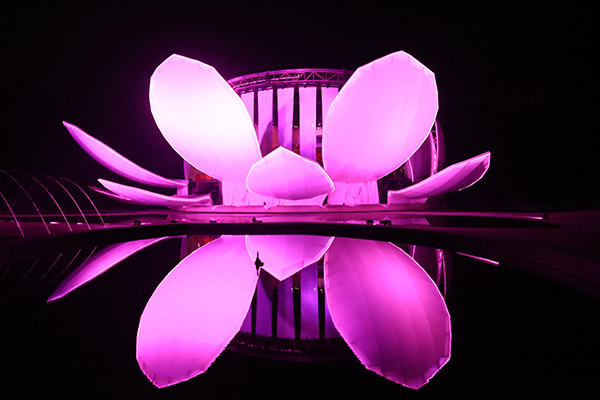

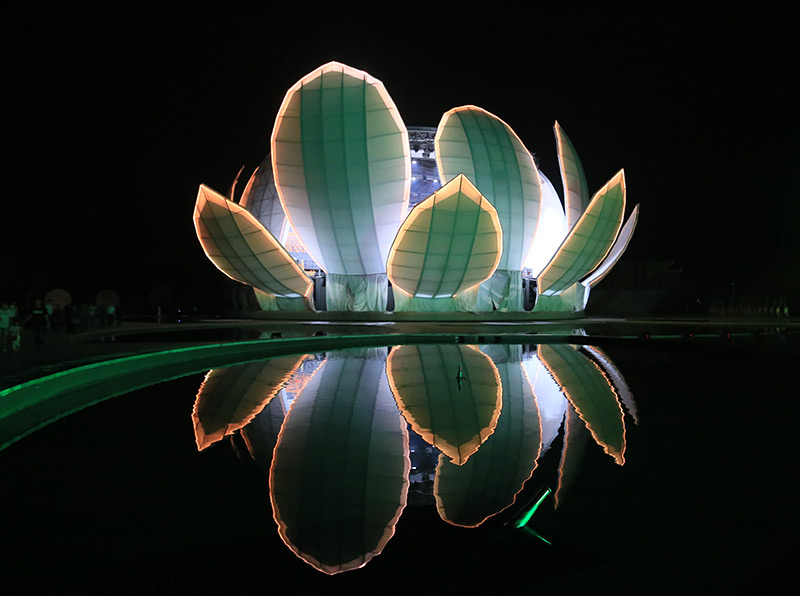

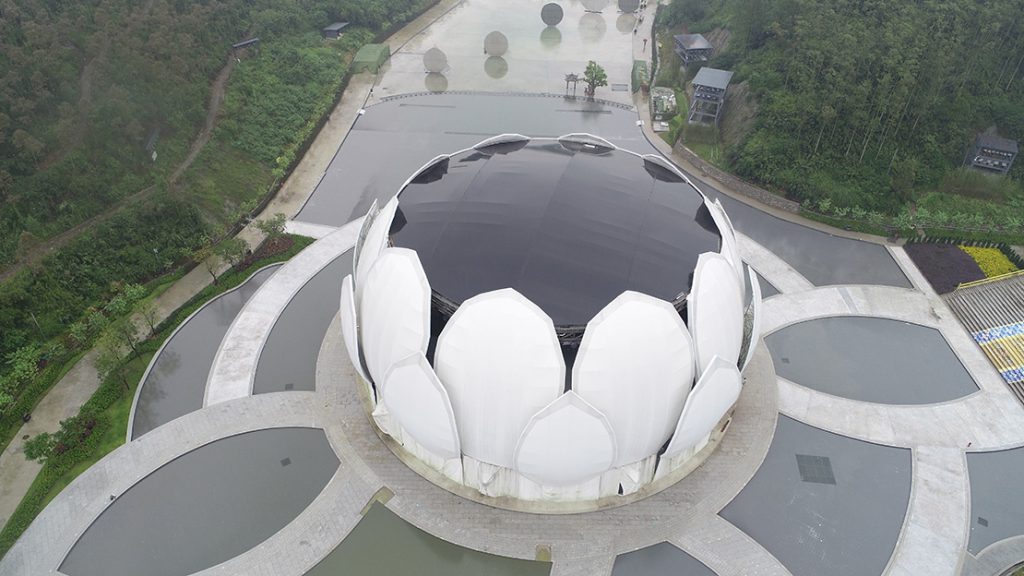

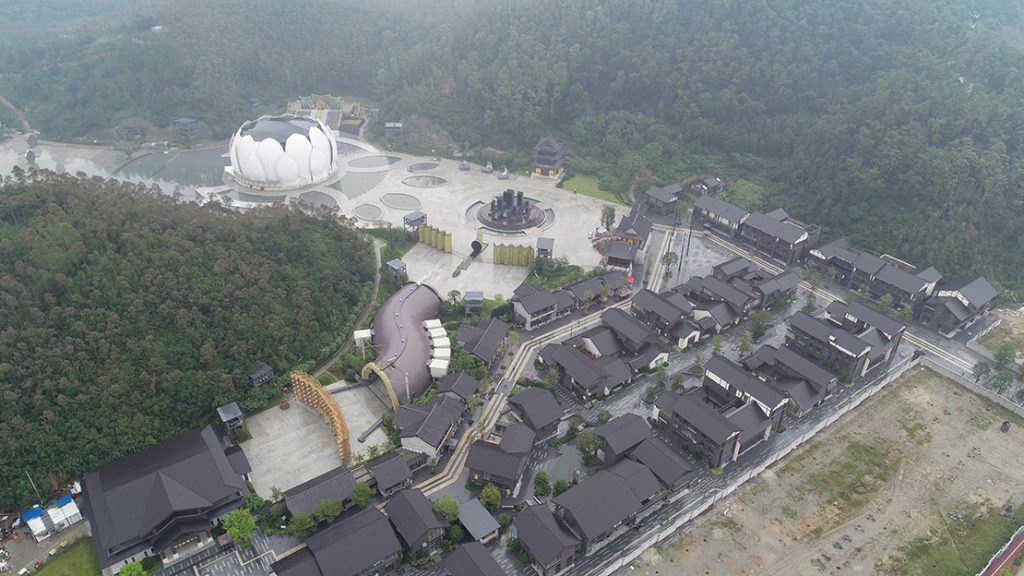

The PTFE membrane structure of Yunfu Lotus is a large lotus theater stage that can rotate 360 degrees freely. The flowers surrounded by 10 large petals and 10 small petals of nearly 1000 square meters can be expanded or closed when needed. The outer membrane of the petals is made of imported PTFE membrane structure, and the lining is made of PTFE mesh membrane. The total amount of membrane structure works is 11280 square meters.
Yexing Membrane Structure Co., Ltd. has solved the structural stability problem of membrane structure petals in the process of opening and closing rotating movement by using rich experience in membrane structure design and construction; It solves the safety problem when petals interact with live performers, and how to perfectly embed many stage specific high-tech equipment in the membrane structure, not only to ensure that the membrane structure has the practicability of stage architecture, but also to consider its aesthetic degree.
Yunfu Xinxing County Zen Holy Land Lotus PTFE Membrane Structure Rotating Stage Theater Project
| Date | 2018 |
|---|---|
| Location | Guangdong, China |
| Size | 16,582 m² |
| Membrane | White PTFE film |
| Structure | Framework Membrane Structure |
PTFE film on glass fiber fabric creates durable roofs with over 30 years of lifespan, ideal for sports venues, commercial facilities, and transportation structures.
View Details
The steel structure of the Yexing project has been carefully constructed and installed by force analysis and structural calculation by STAAD, SW, ANSYS, RHINO, 3D3S and other software, and has become a permanent building structure with a life of at least 50 years.
Yexing has 19 years of professional installation experience in steel structure and 15 years of membrane structure, and more than 400+ landing projects at home and abroad are the greatest affirmation of Yexing's construction level.
Imported top brand membrane material, with high tensile strength, large bearing capacity, long service life, bearing capacity per square can reach 300-500KG, wind resistance level 12 or more, upper, seismic resistance above 7 grade.
Yexing adopts imported intersecting wire cutting equipment and first-stream carbon dioxide protection welding equipment, which has good precision, high efficiency, and electric welder certificate. On-the-job, strict assessment, outstanding craftsmanship.
The anti-corrosion and anti-rust process of Yexing film structure is controlled layer by layer through 8 processes: shot blasting, rust removal, sandblasting, 2 primers, intermediate paints and 2 topcoats, and strictly abide by the quality.
Yexing membrane structure accessories are high-quality, all stainless steel or national standard hot-dip galvanized customized standard parts, PE cables are provided by Juli Group, high vanadium cables are provided by Jianlang Group.
